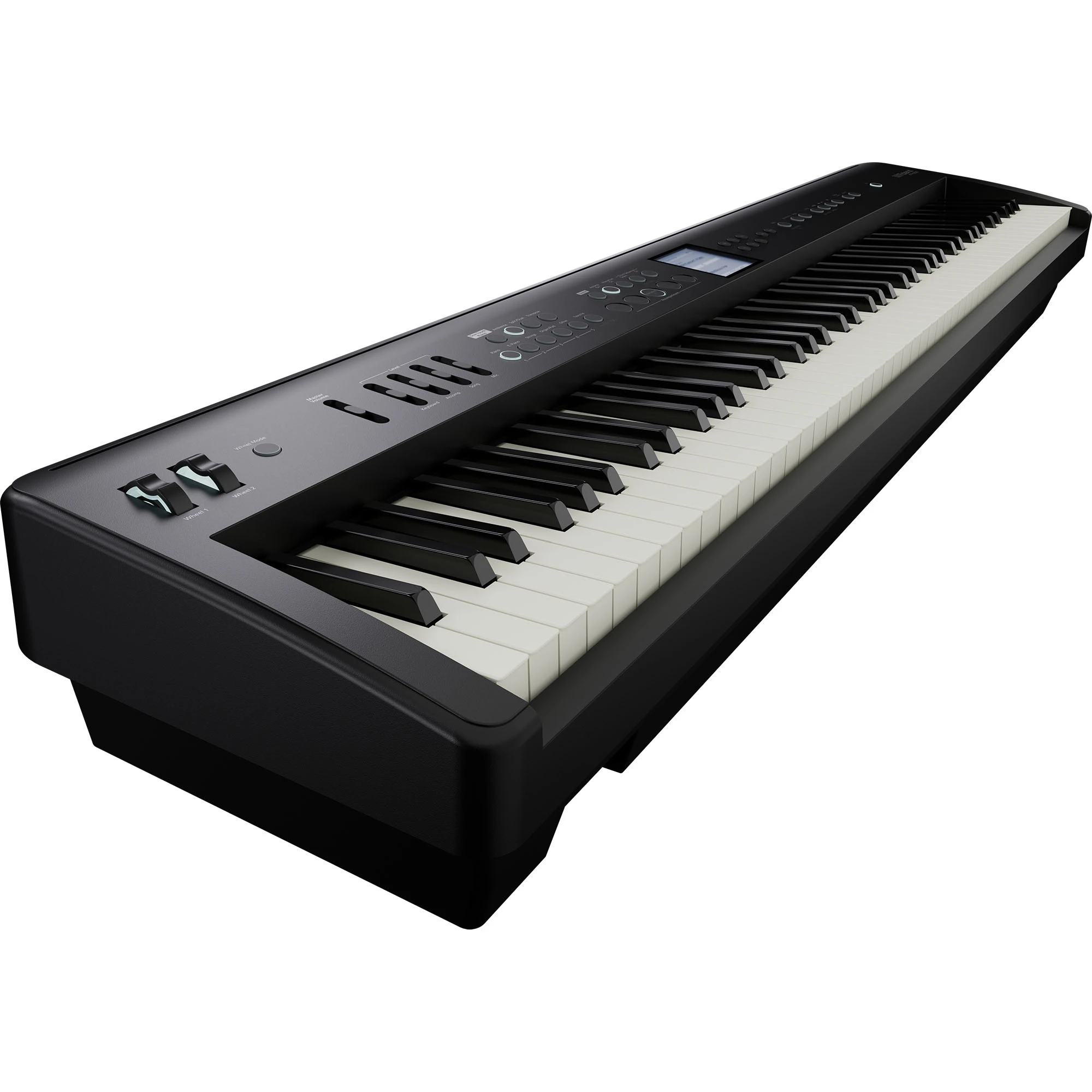

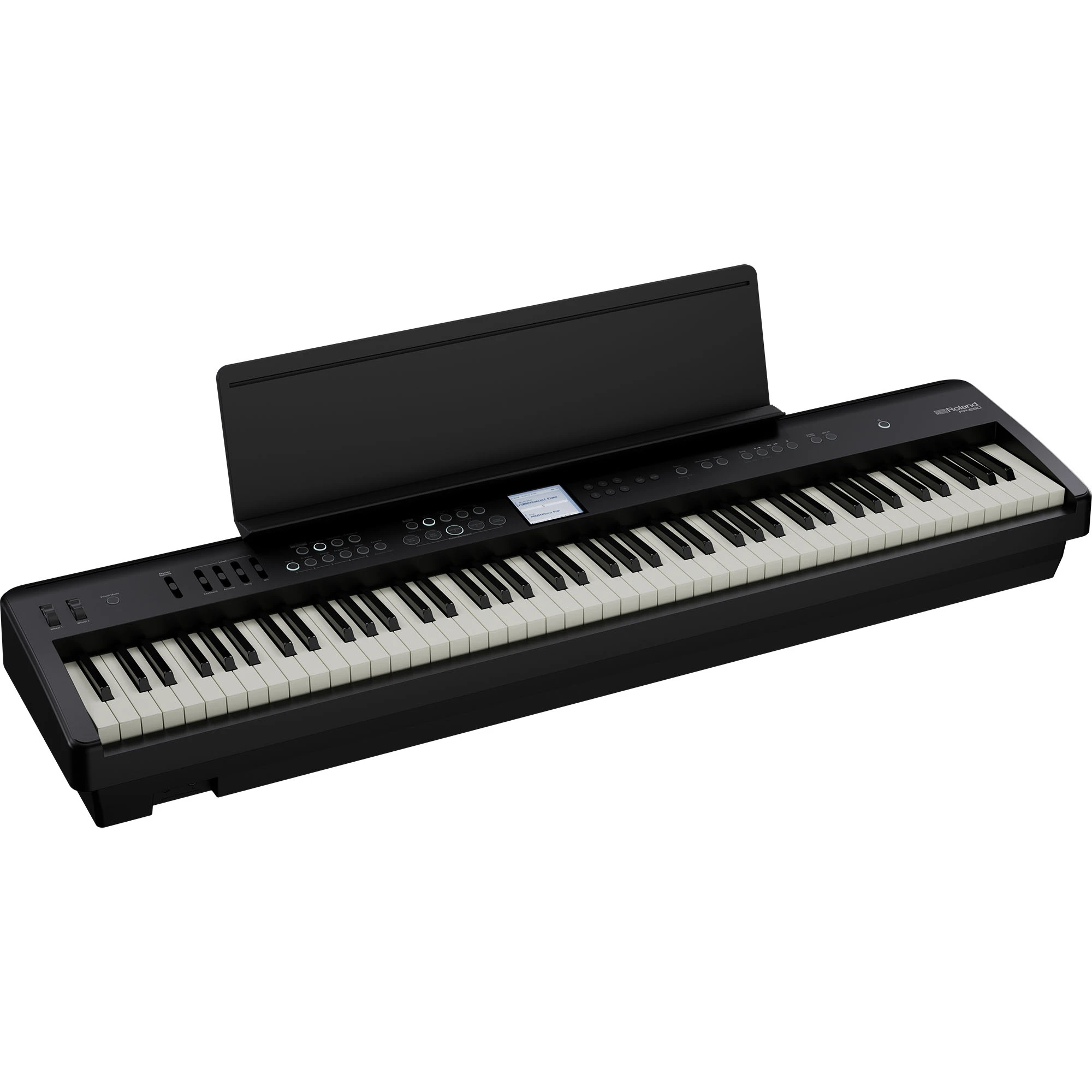

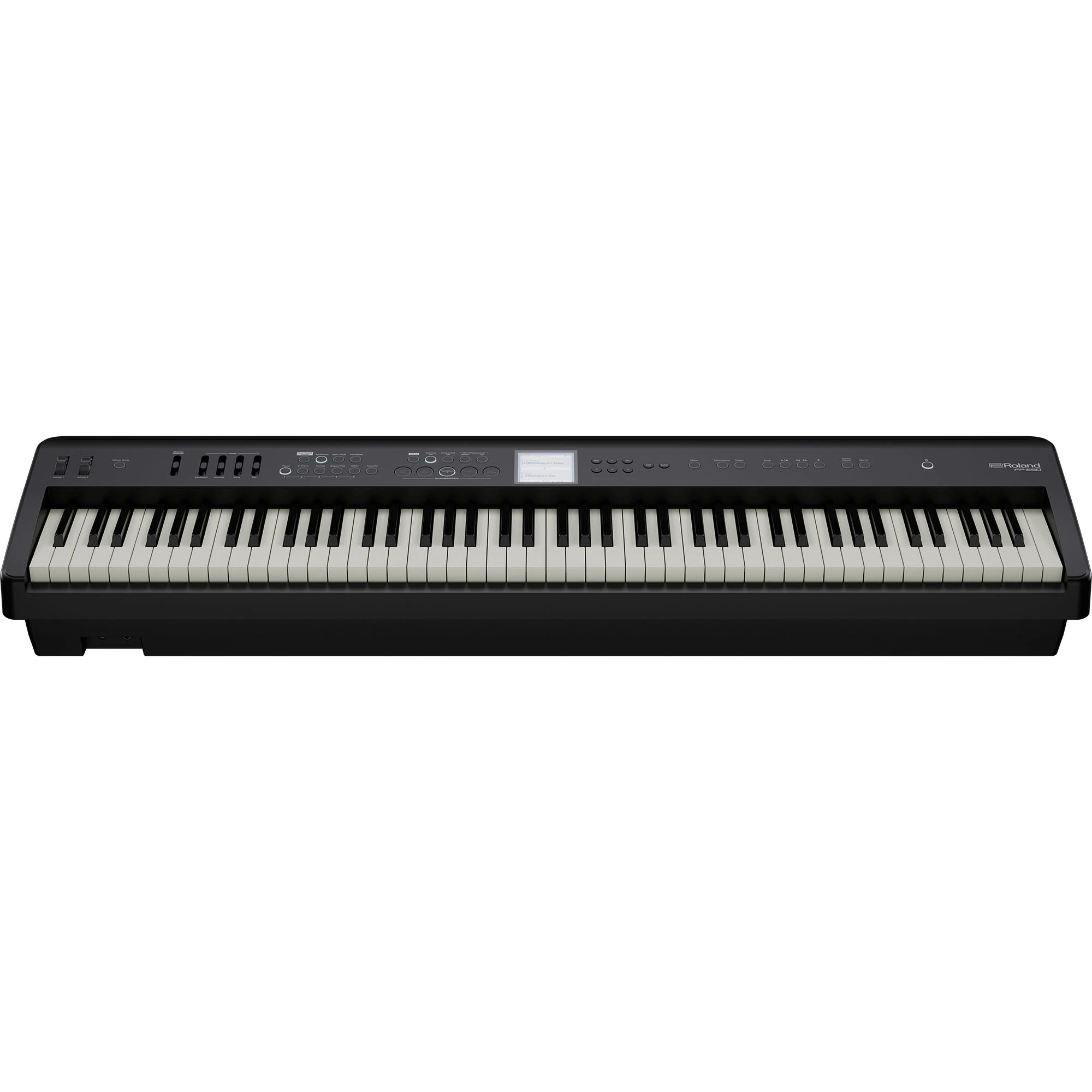

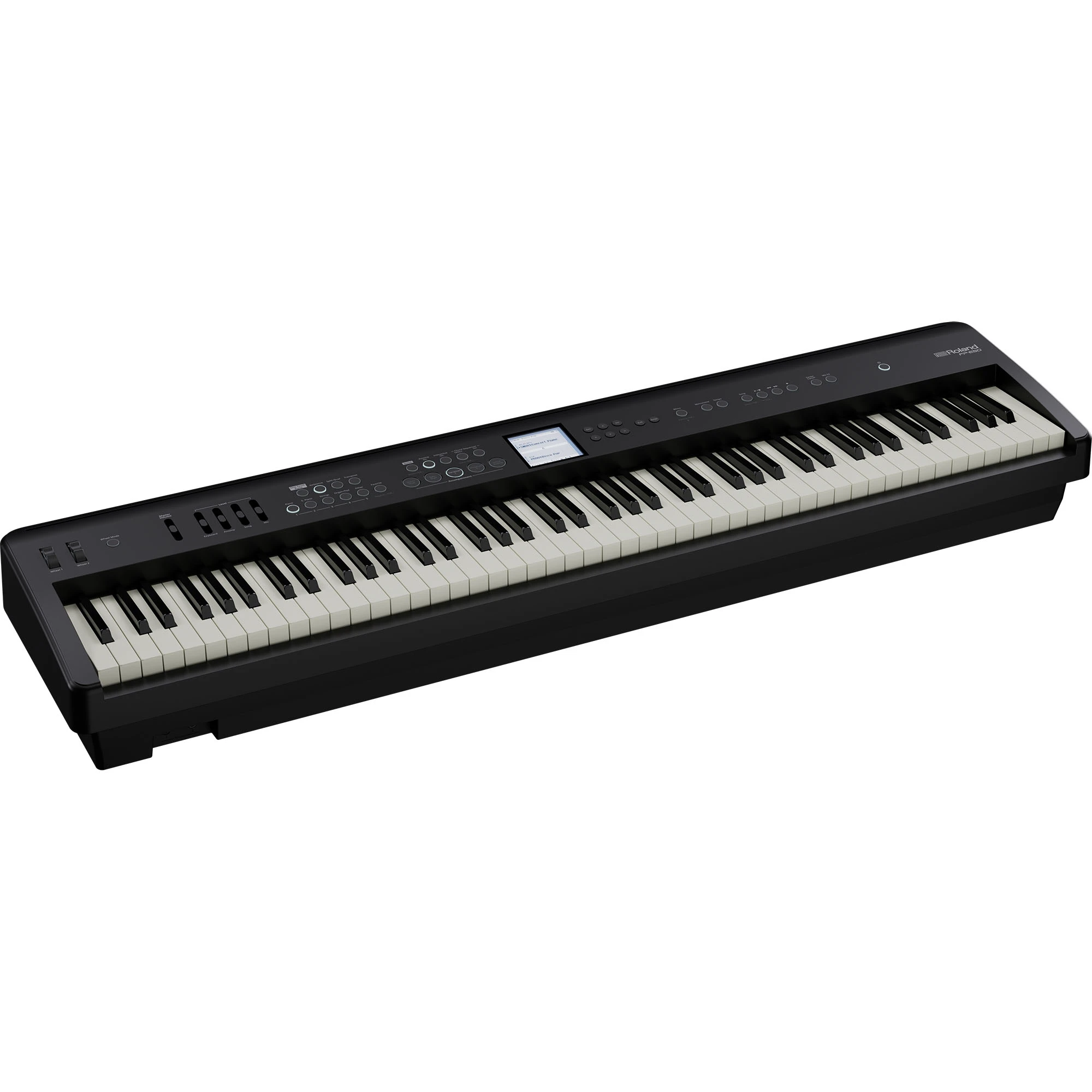

 Kompaktes Digitalpiano mit Begleitautomatik
|
| SuperNATUARL Piano und ZEN Core Sounds
|
| Lade Dir neue Sounds über die Roland Cloud aufs Instrument
|
| PHA4 Tastatur mit 88 Tasten
|
| MikrofonEingang mit Vocal Effekten
|
| Bluetooth Audio und MIDI
|
| inkl. DP2 Pedal
|
| (optionaler Stand KSFE50 und 3fach-Pedalboard KPD70)
|
| Abmessungen |
1,300 (B) x 322 (T) x 174 (H) mm |
| Gewicht |
17,1 Kg |
| Lieferumfang |
Kurzanleitung, Informationsblatt „USING THE UNIT SAFELY“, AC-Adapter, Netzkabel, Notenständer, Damper Pedal (DP-2) |
| Hammermechanik |
Ja |
| echte Klaviermechanik |
Nein |
| Farbe (Design) |
Schwarz matt |
| Tastenanzahl |
88 Tasten |
| Kopfhörer Ausgänge |
Ja |
| Mikrofon Eingang |
Ja |
| Line Eingänge |
Ja |
| Line Ausgänge |
Ja |
| Audio File Player |
Ja |
| MIDI File Player |
Nein |
| Touch Display |
Nein |
| USB-Stick Audio Aufnahme |
Ja |
| integrierte Rhythmus Funktion |
Ja |
| komplette Begleitautomatik |
Ja |
| integrierte Lautsprecher |
Ja |
| Transponieren |
Ja |
| Master-Tuning |
Ja |
| String Resonance |
Ja |
| Damper Resonance |
Ja |
| Bluetooth |
Ja (Audio) |
| Key Off Effekt |
Ja |
| USB zu Computer |
Ja |
| Integriertes Metronom |
Ja |
| Batteriebetrieb |
Nein |
Technische Daten
Sound Generator
- SuperNATURAL Piano
- ZEN-Core
Max. Polyphony
256
Tones
Piano: 38 tones
E.Piano: 34 tones
Strings: 36 tones
Organ/Pad: 184 tones
Synth/Other: 729 tones (including 74 drum sets)
Am...
mehr lesen
Sound Generator
- SuperNATURAL Piano
- ZEN-Core
Max. Polyphony
256
Tones
Piano: 38 tones
E.Piano: 34 tones
Strings: 36 tones
Organ/Pad: 184 tones
Synth/Other: 729 tones (including 74 drum sets)
Ambience
Type: Studio, Lounge, Concert Hall, Cathedral
Depth: 10 types
Keyboard
Keyboard
88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)
Speaker System
Speakers
Speakers: 12 cm (4-3/4 inches) x 2 (with speaker box)
Rated Power Output
11 W x 2
Headphones
Headphones 3D Ambience
Bluetooth
Bluetooth Ver 4.2
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)

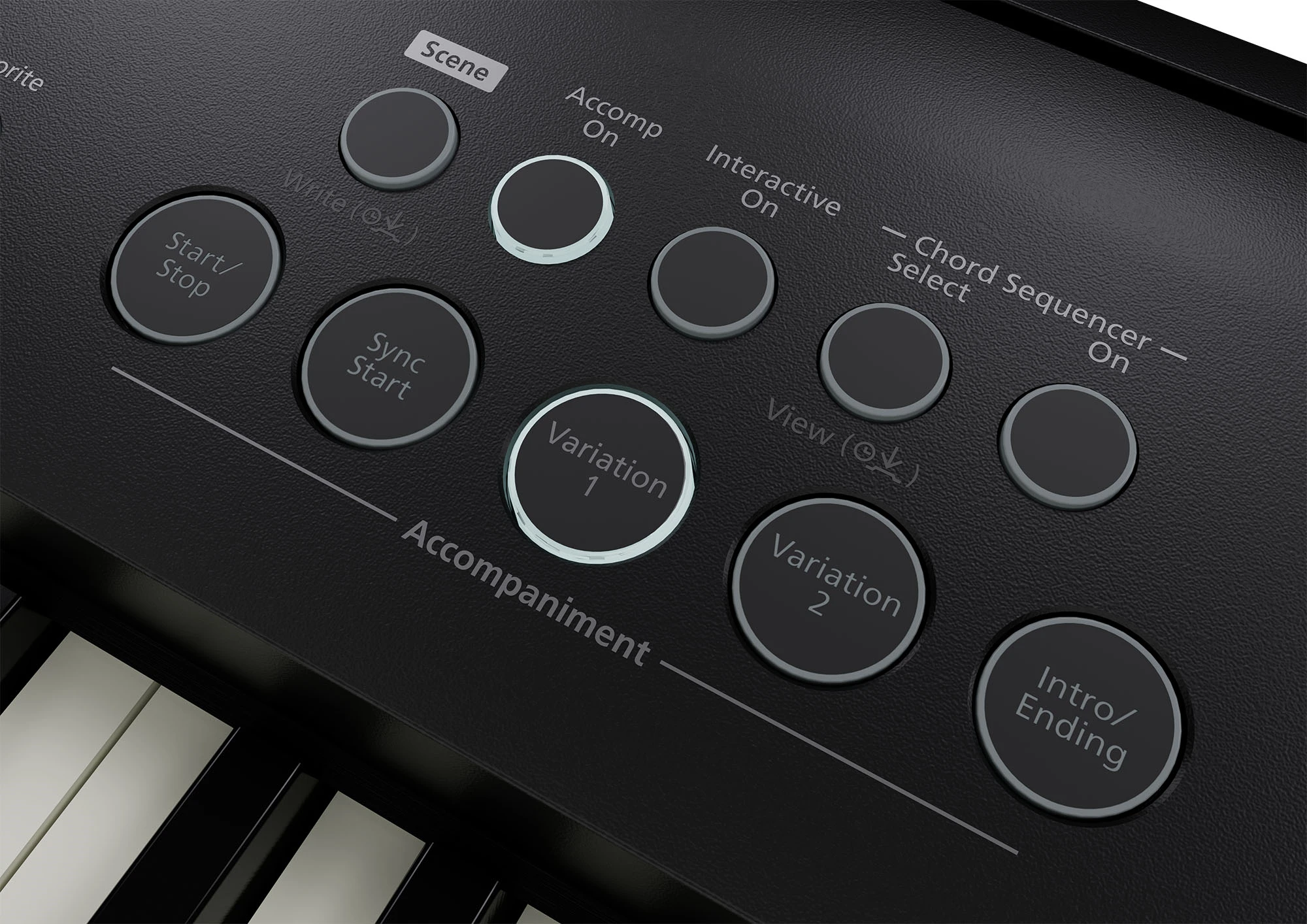

Automatic accompaniment
Style
Preset: 107 styles
Controls
Start/Stop, Intro/Ending, Sync Start. Variation1, Variation2, Interactive function
Chord Sequencer
Preset Chord Pattern: 140 types
Scene
Preset: 107 styles
User Scene: 256
*Import / export possible
Data Playback
Playable Software
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64--320 kbps)
Recorder
Recordable Software
Audio File (WAV: 44.1 kHz, 16-bit linear format)
Recording time: 390 min (Maximum recording time per song: 200 min)
Recording System
New Song Recording
Overlapping Recording
Internal Songs
3 Songs
Tuning, Voicing
Touch Sensitivity
Key Touch: 100 types, fixed touch
Hammer Response: 10 types
Master Tuning
415.3--466.2 Hz (adjustable in increments of 0.1 Hz)
Temperament
10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
Effects
Ambience
Equalizer (3-band digital equalizer)
Only for organ tones:
Rotary Speaker Effect
Mic Effects
Harmony (9 types)
Voice Transformer (Octave: -1--+1, Formant: -12--+12 semitones)
Vocoder (Type: 26 types, Tone; 26 types)
Compressor (Type: Soft, Normal, Hard)
Noise Suppressor (Threshold: -96--0 dB)
Piano Designer
Lid
String Resonance
Damper Resonance
Key Off Resonance
Cabinet Resonance
Single Note Tuning
Single Note Volume
Single Note Character

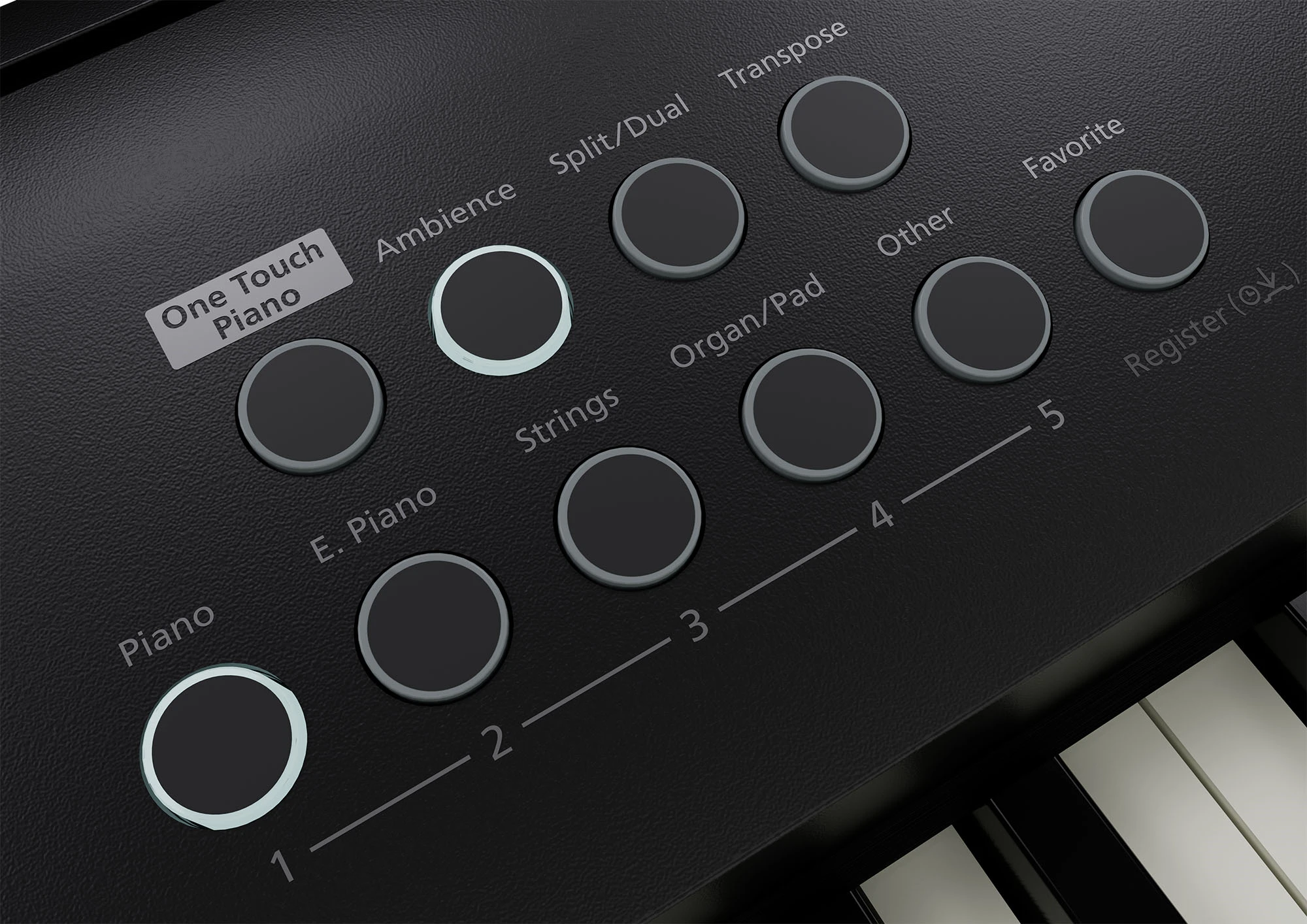

Convenient Functions

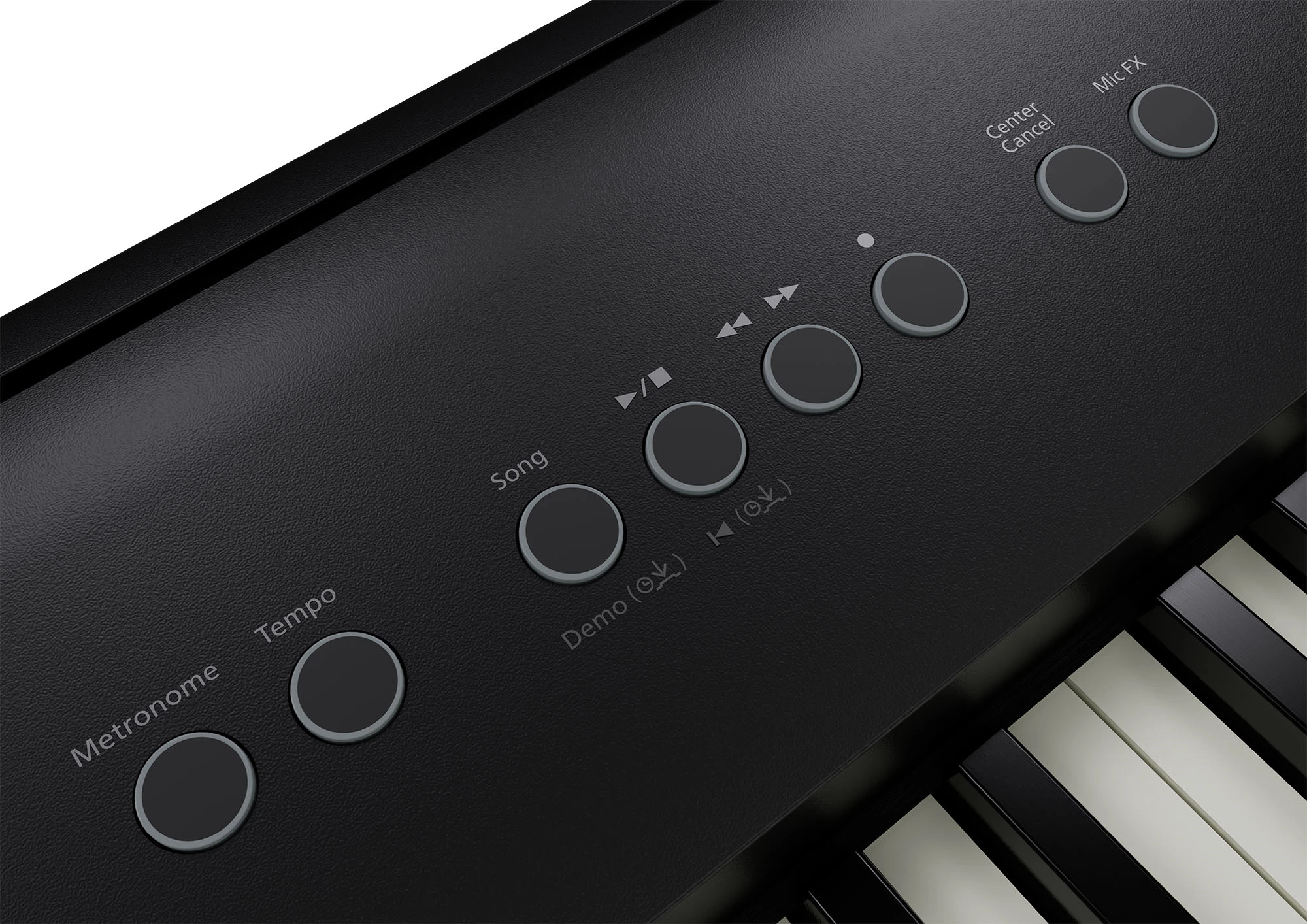

Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Transpose (Keyboard/Style: in semitones)
Favorite Tone (50 tones)
Dual
Split (split point adjustable)
Twin Piano
Demo Song
Center Cancel
Auto Off
One Touch Piano
Other

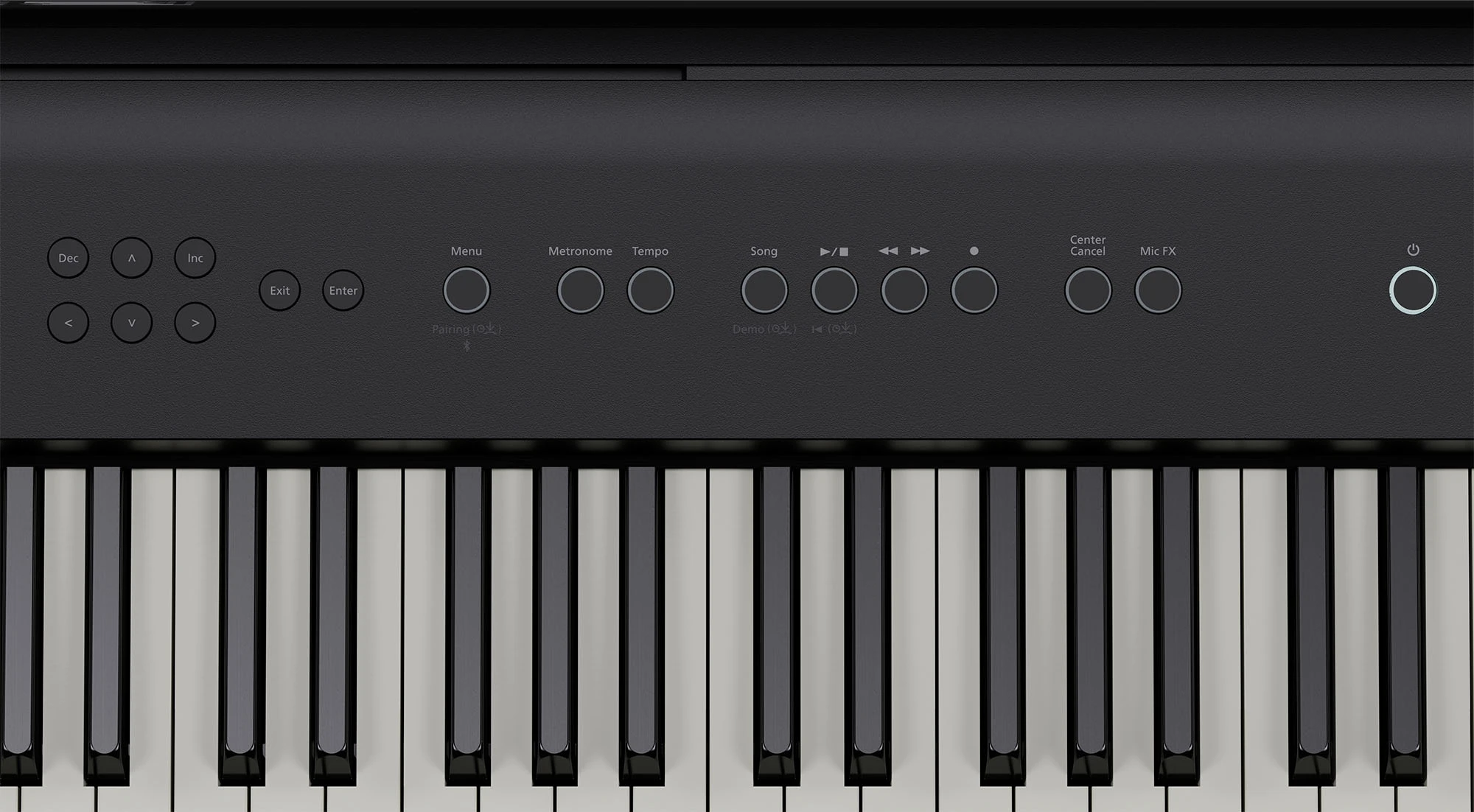

Display
Graphic LCD 160 x 160 dots

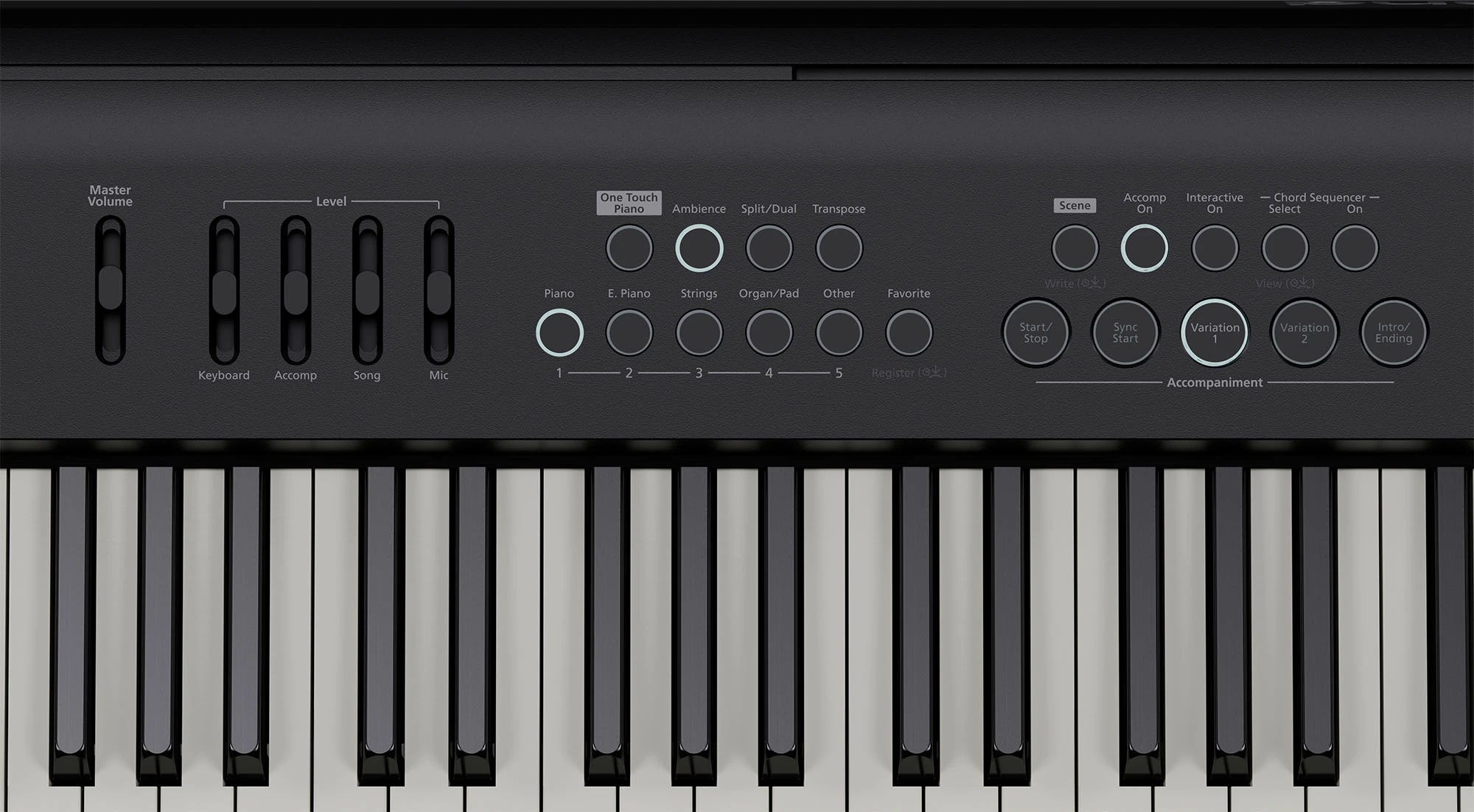

Control
Master Volume slider
Accompaniment Volume slider
Song Volume sliders
Mic Volume slider
Mic Gain knob
Assignable Wheel x 2
Connectors
DC In jack
Pedal1 (Damper) jack (capable of continuous detection when optional pedal connected)
Pedal2 (Damper, Sostenuto, Soft) jacks (capable when dedicated pedal board connected)
Input Stereo jack: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
Mic Input jack: 1/4-inch phone type
USB Computer port: USB B type (supports USB MIDI/AUDIO)
USB Memory port: USB A type
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
Power Supply
AC adaptor
Power Consumption
11W (When using the included AC adaptor)
*Approximate power consumption when playing the piano at medium volume: 6 W
Power consumption when sound has not been played after power-on: 5 W

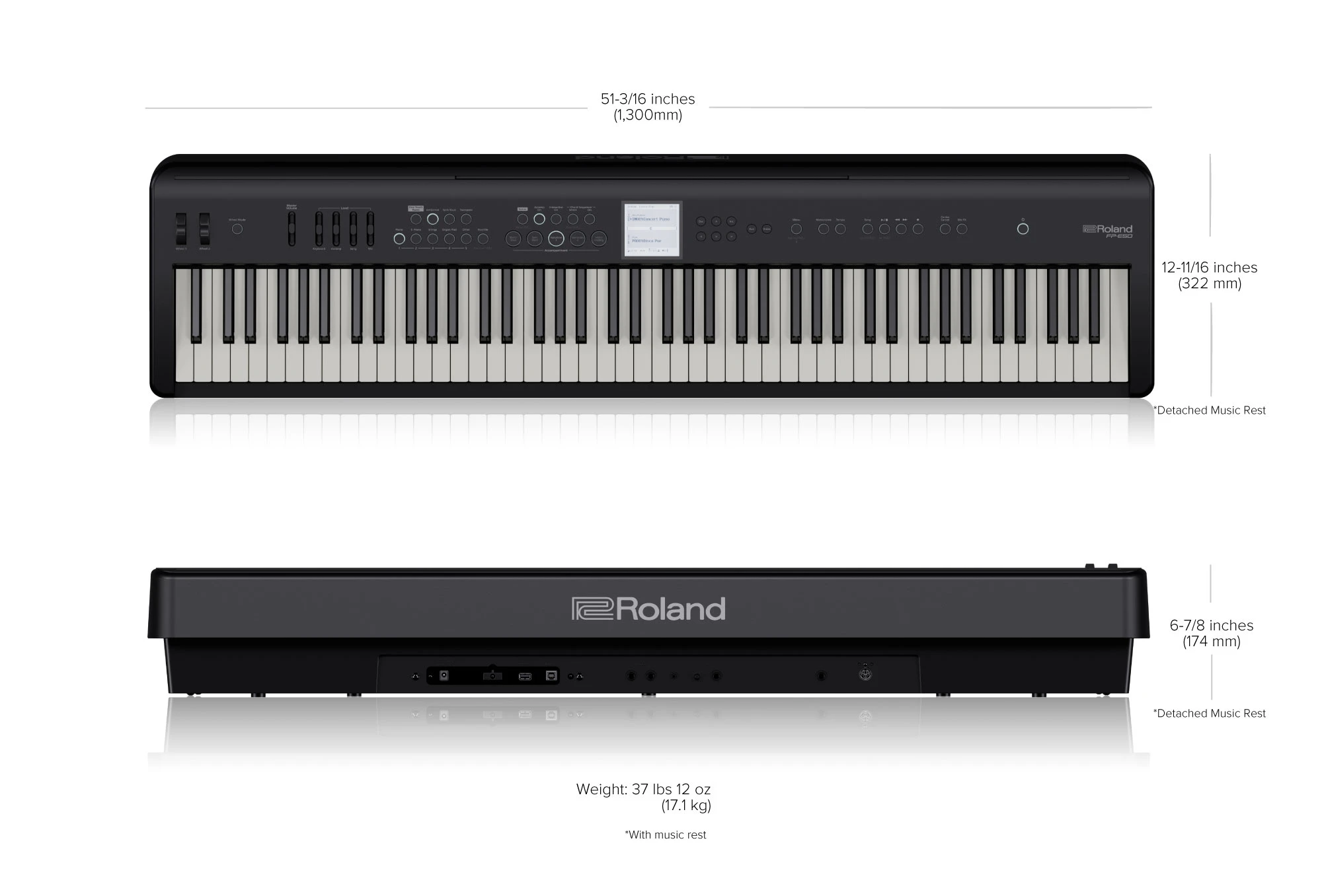

Dimensions
Detached music rest:
1,300 (W) x 322 (D) x 174 (H) mm
51-3/16 (W) x 12-11/16 (D) x 6-7/8(H) inches
FP-E50 with KSFE50 and music rest:
1,300 (W) x 357 (D) x 953 (H) mm
51-3/16 (W) x 14-1/16 (D) x 37-9/16 (H) inches
Weight
17.1 kg, 37 lbs 12 oz (FP-E50 with music rest)
27.3 kg, 60 lbs 3 oz (FP-E50 with KSFE50, KPD-70, and music rest)
Accessories
Quick Start
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

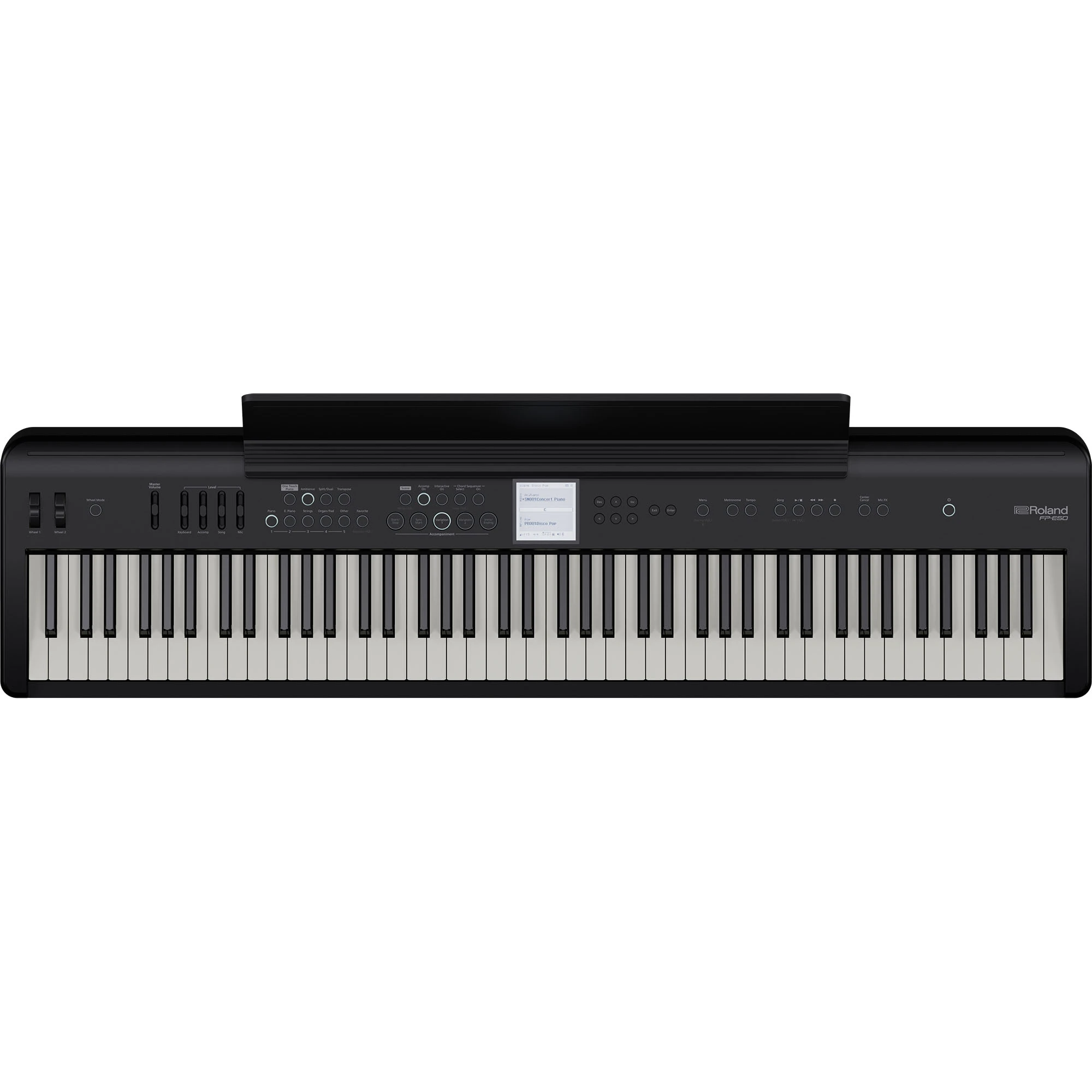

Music rest
Damper pedal (DP-2)
Option (sold separately)

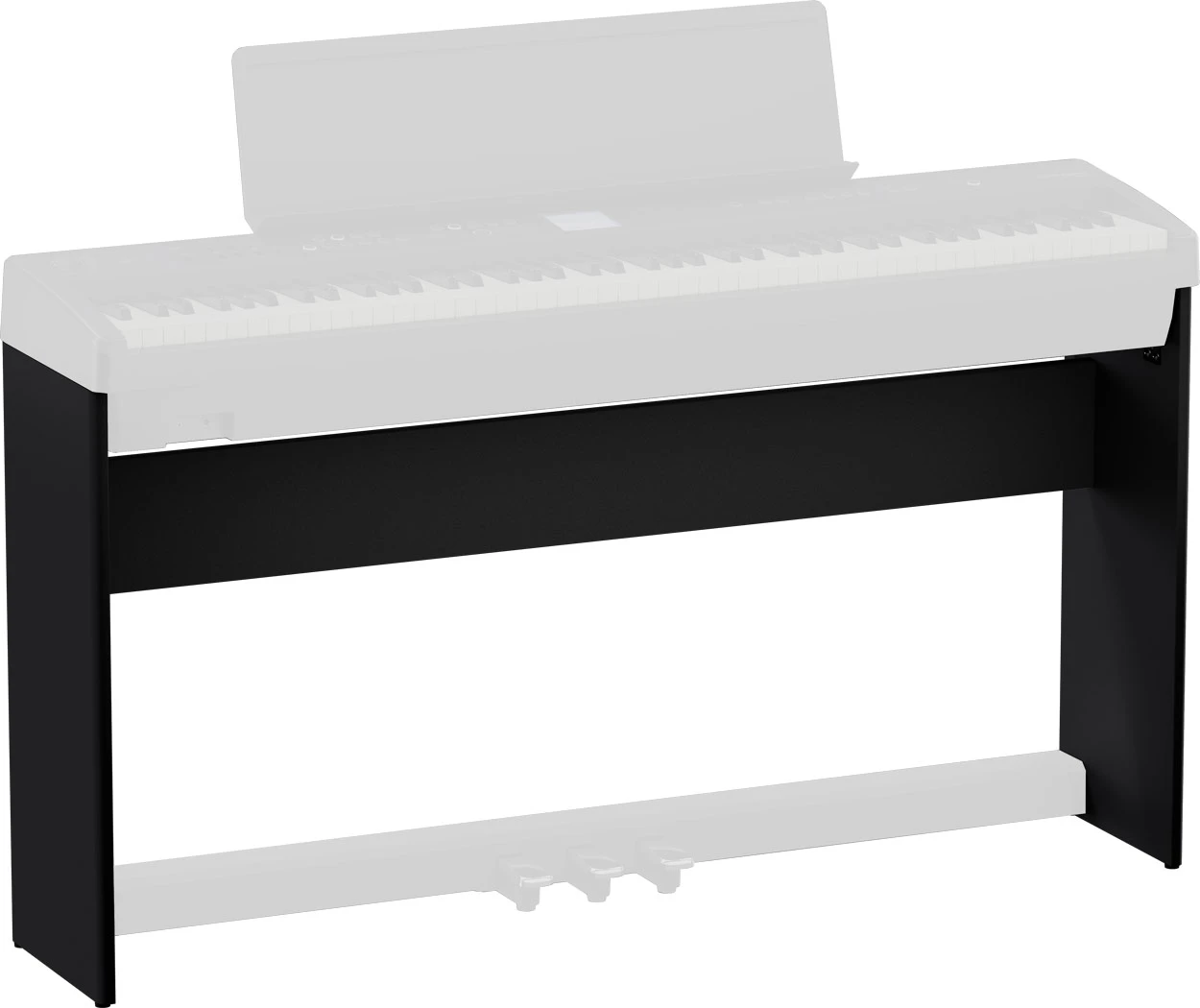

Dedicated stand: KSFE50
Dedicated pedal board: KPD-70
Keyboard stand: KS-10Z, KS-12, KS-20X
Damper pedal: DP series
Expression pedal: EV-5
Headphones
