Technische Daten
SOUND GENERATOR
Piano SoundSuperNATURAL Piano
Max. Polyphony
256 Tones
Piano: 16 tones
E.Piano: 18 tones
Organ: 18 tones
Strings/Pad: 27 tones
Synth/Other: 279 tones (including 8 drum sets, 1 SFX se...
mehr lesen
SOUND GENERATOR
Piano SoundSuperNATURAL Piano
Max. Polyphony
256 Tones
Piano: 16 tones
E.Piano: 18 tones
Organ: 18 tones
Strings/Pad: 27 tones
Synth/Other: 279 tones (including 8 drum sets, 1 SFX set)
AMBIENCE
TypeStudio, Lounge, Concert Hall, Cathedral
Depth
11 types
MY STAGE
8 types
KEYBOARD
88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)
SPEAKER SYSTEM
Speakers8 x 12 cm (3-3/16 x 4-3/4 inches) x 2 (with speaker box)
Rated Power Output 13 W x 2
HEADPHONES
3D Ambience
BLUETOOTH
AudioBluetooth Ver 3.0 (Supports SCMS-T content protection)
MIDIBluetooth Ver 4.0
COMPATIBLE ANDROID / IOS APPS (ROLAND)
Piano Every Day
Piano Designer
DATA PLAYBACK
Playable Software
Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB flash drive)
RECORDER
Recordable Software
Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)
32 internal Songs
TUNING, VOICING
Touch Sensitivity
Key Touch: 100 types, fixed touch
Hammer Response: 10 types
Master Tuning
415.3466.2 Hz (adjustable in increments of 0.1 Hz)
Temperament10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
EffectsAmbience
Equalizer (3-band digital equalizer)
Only for organ tones:
Rotary Speaker Effect
Only for E.Piano tones:
Modulation SpeedMic EffectsCompressor
Doubling
EchoPiano DesignerLid
String Resonance
Damper Resonance
Key Off Resonance
Single Note Tuning
Single Note Volume
Single Note Character
CONVENIENT FUNCTIONS
Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Auto Tempo
Transpose (Keyboard/Song: in semitones)
Registration (45 registrations, capable of pedal shift)
Registration Set
Dual
Split (split point adjustable)
Twin Piano
Tone Demo
Auto Off
OTHER

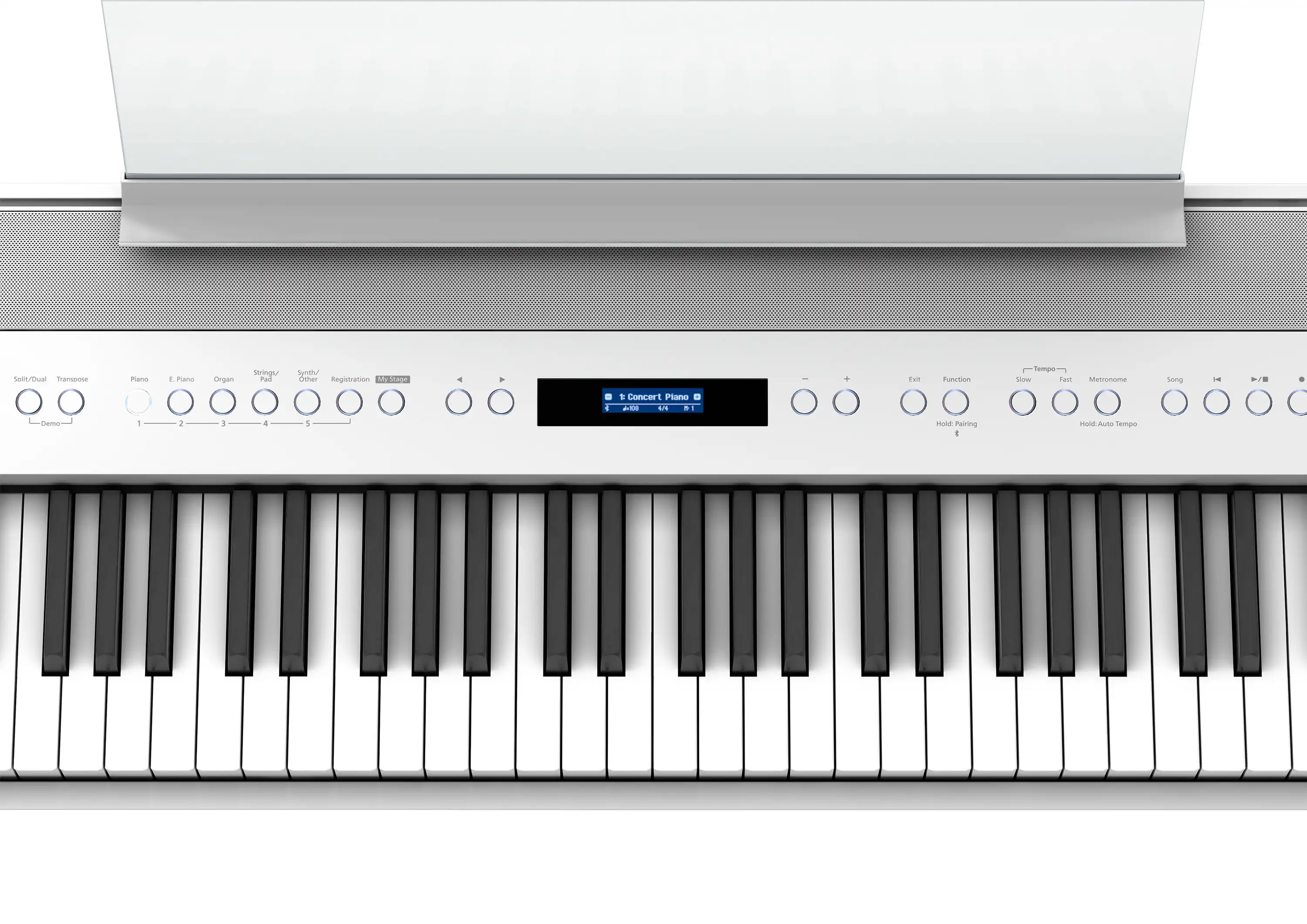

Display
Graphic LCD 132 x 32 dots
ControlVolume slider
Equalizer sliders (Low/Mid/High)
Part sliders (Lower/Upper)
Mic Vol. slider
Speaker switch
Mic Gain knob

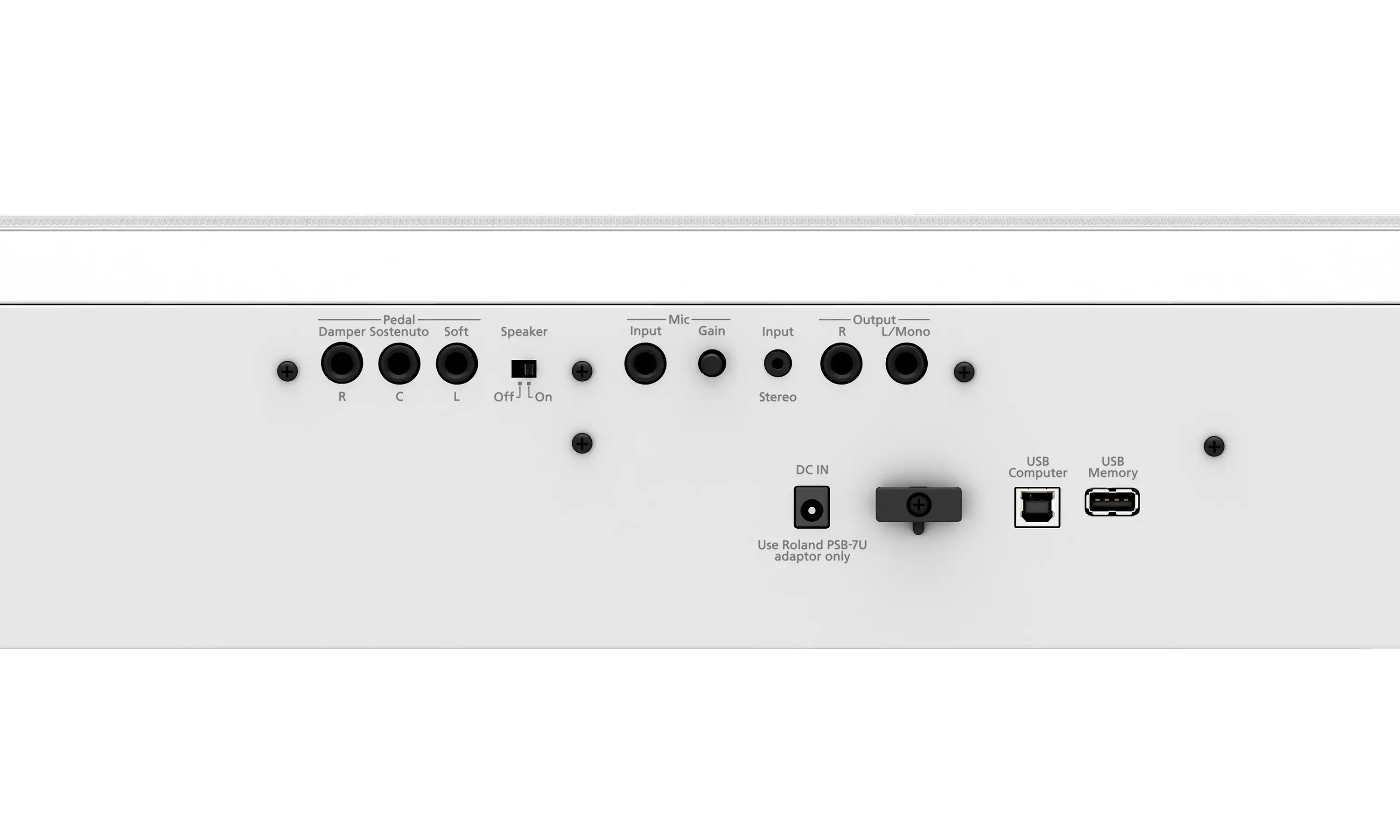

Connectors
DC In jack
Pedal (Damper/R, Sostenuto/C *1, Soft/L *1) jacks: TRS 1/4-inch phone type
Input Stereo jack: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
Mic Input jack: 1/4-inch phone type
USB Computer port: USB B type
USB Memory port: USB A type
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
*1: AssignablePower SupplyAC adaptorPower Consumption25W (When using the included AC adaptor)
*Approximate power consumption when playing the piano at medium volume: 5W
Power consumption when sound has not been played after power-on: 4W
ACCESSORIES
Owner?s Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Music rest
Damper pedal (DP-10, capable of continuous detection)
Dedicated stand: KSC-72
Dedicated pedal board: KPD-90
Head
OPTION (SOLD SEPARATELY)
Keyboard stand: KS-G8B, KS-10Z, KS-12, KS-20X
Pedal unit: RPU-3
Damper pedal: DP series
Pedal switch: DP-2 (*1)
Expression pedal: EV-5

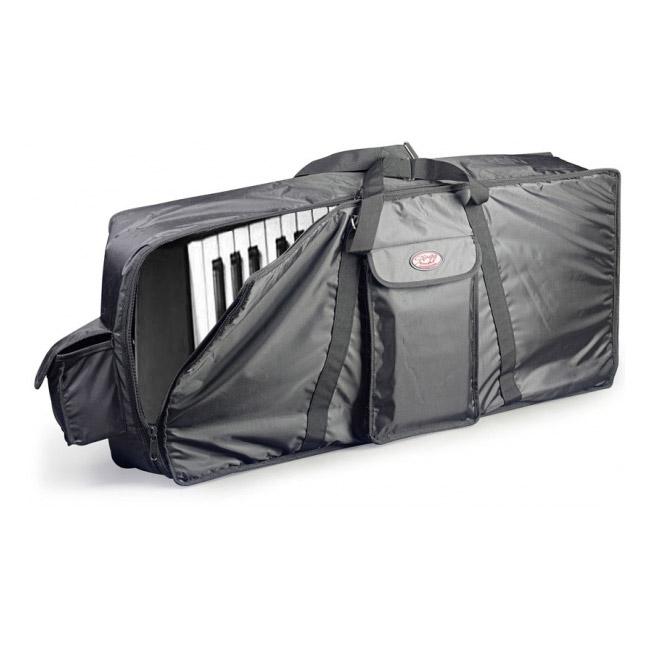

Carrying Bag: CB-88RL
Headphones
Pianobank stufenlos höhenverstellbar
*1 Cannot use for Damper/R.
SIZE & WEIGHT
Dimensions
Detached music rest:
1,291 (W) x 344 (D) x 126 (H) mm
50-7/8 (W) x 13-9/16 (D) x 5 (H) inches

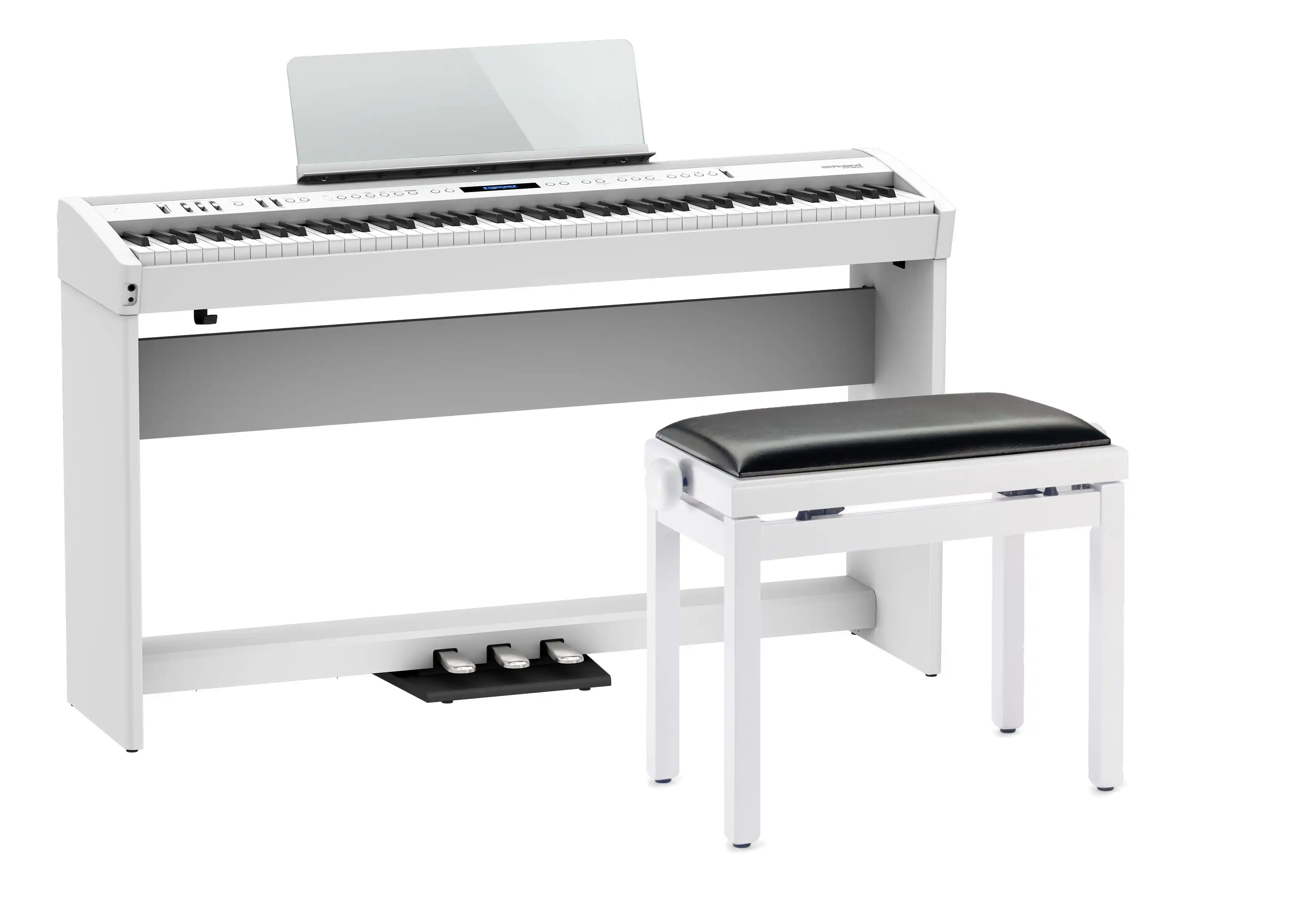

FP-60X with KSC-72 and music rest:
1,291 (W) x 382 (D) x 939 (H) mm
50-7/8 (W) x 15-1/16 (D) x 37 (H) inches
Weight19.3 kg, 42 lbs 9 oz (FP-60X with music rest)
33.0 kg, 72 lbs 13 oz (FP-60X with KSC-72, KPD-90, and music rest)
