Kompakte Audio Lösung für Streaming/Gaming- und andere Content Creators
|
Passe den Stream-Mix über die Companion-App an und steuere den persönlichen Mix in Echtzeit mit den Hardware-Mixer-Reglern.
|
Hochwertiger XLR-Mikrofonvorverstärker und Boost (max. +75dB), Phantomspeisung für Broadcast-Mikrofone.
|
Drei Stummschaltungs-/zuweisbare Schnellzugriffstasten ermöglichen das Stummschalten, das Zuweisen von Soundeffekten, Hotkeys zur Steuerung von OBS oder andere benutzerdefinierte Funktionen.
|
Der Drehregler schaltet 3-Kanal-Audio um und ermöglicht eine direkte Pegelregulierung. Er enthält zudem einen Balance-Modus zur gleichzeitigen Anpassung von Spiel- und Chat-Audio.
|
Hochwertige Stimmverarbeitung |
Stimmenverzerrer, EQ, Kompressor, Rauschunterdrücker, De-Esser und Hall. |
Leistungsstarker 32-Bit-Hardware-DSP, der alle Computerressourcen für Gaming und Streaming freigibt.
|
Unterstützt USB-Virtual-Surround für ein immersives und kraftvolles Klangerlebnis mit bis zu 7.1 Kanälen.
|
Die Companion-App BRIDGE CAST ermöglicht tiefere Anpassungen und Zugriff auf lizenzfreie Hintergrundmusik-Tracks und Soundeffekte über BGM CAST, wenn du ein Roland Cloud Core-Mitglied wirst. |
Technische Daten
-Input Channel
MIC
AUX
USB CHAT (*1)
USB GAME (Speakers) (*1)
USB MUSIC (*1)
USB SYSTEM (*1)
USB CONSOLE (Speakers) (*2)
(*1) When the USB port connection setting is "PC"
(*2) When the USB port connec...
mehr lesen
-Input Channel
MIC
AUX
USB CHAT (*1)
USB GAME (Speakers) (*1)
USB MUSIC (*1)
USB SYSTEM (*1)
USB CONSOLE (Speakers) (*2)
(*1) When the USB port connection setting is "PC"
(*2) When the USB port connection setting is "CONSOLE"
-Output Channel
LINE OUT
PHONES
AUX (*3)
USB MIC (*4)
USB STREAM (*4)
USB PERSONAL (*4)
USB CONSOLE (Microphone) (*5)
(*3) Microphone audio is output from the CTIA MIC jack
(*4) When the USB port connection setting is "PC"
(*5) When the USB port connection setting is "CONSOLE"
-Audio Mixing Bus
2 (STREAM MIX, PERSONAL MIX)
-Sampling Frequency
Windows: 44.1 kHz, 48 kHz, 96 kHz
macOS/Other: 48 kHz
-Signal Processing
AD/DA: 24 bits
Internal Processing: 32-bit Floating point
-Effects
MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
GAME/AUX (*6): Equalizer, Limiter, Virtual Surround
STREAM: Delay
(*6) Select with GAME EFFECTS setting
- Audio File Player
Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track
-Input Level
MIC: -85-- -10 dBu (Maximum: +2 dBu)
HEADSET MIC: -58.5-- -20.5 dBu (Maximum: -8.5 dBu)
AUX: -10 dBu (Maximum: +2 dB
-Input Impedance
MIC: 3.4 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms
-Output Level
LINE OUT: -4 dBu (Maximum: +8 dBu)
HEADSET: +1 dBu (Maximum: +13 dBu)
HEADSET: 78 mW + 78 mW (32 ohms)
HEADSET: 35 mW + 35 mW (250 ohms)
-Output Impedance
LINE OUT: 1 k ohm
HEADSET: 10 ohms

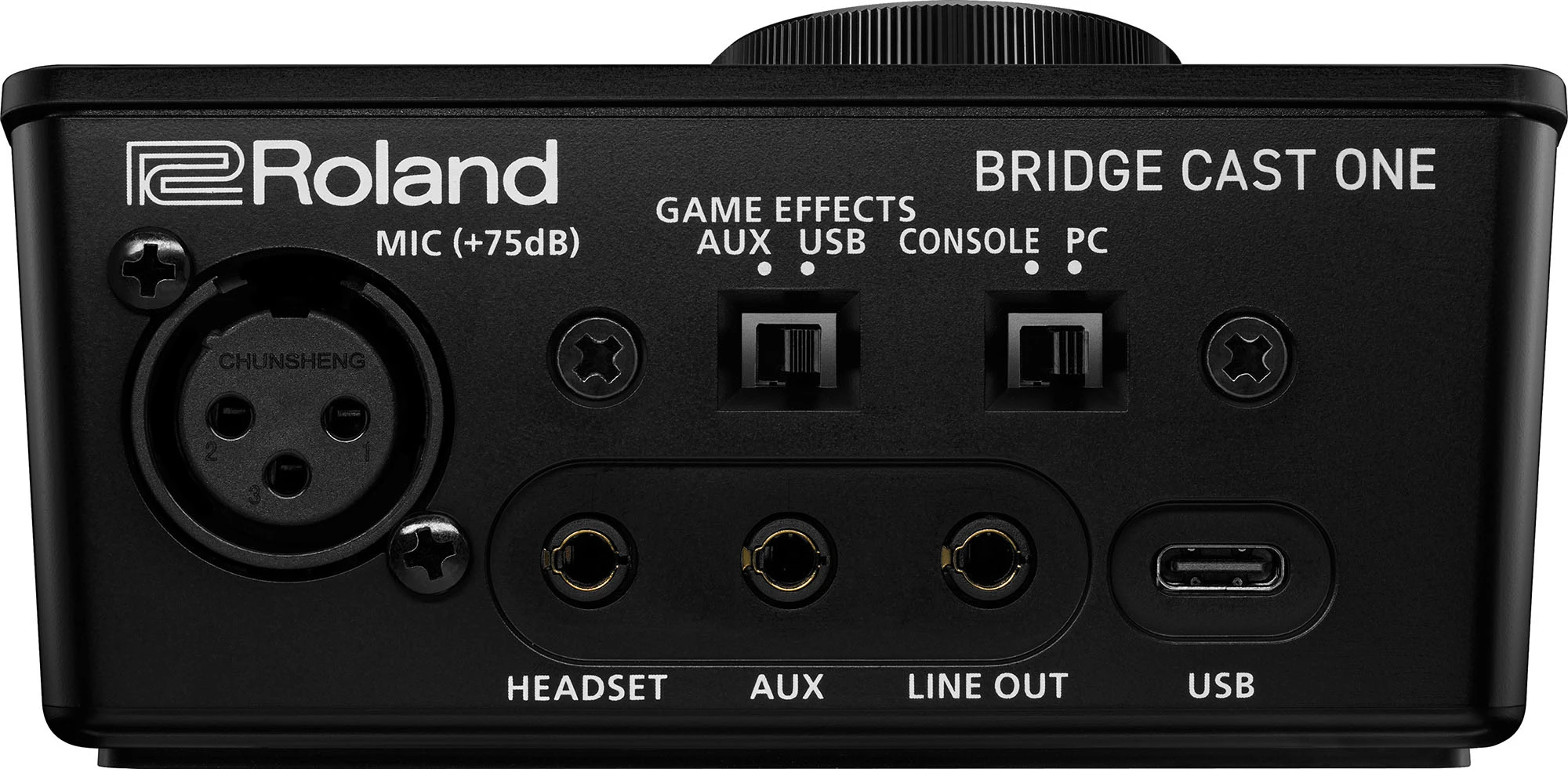

-Connectors
MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
USB port: USB Type-C (R) (Audio/MIDI/HID Supported)
-Power
USB bus power
* Connect to a USB connector that can supply 5 V, 900 mA or more.
-Current Draw
5 V DC, 900 mA
-Operating System
Microsoft Windows 10, Windows 11
Apple macOS 12 or later
* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the BRIDGE CAST ONE, Roland cannot guarantee that a given computer can be used satisfactorily with the BRIDGE CAST ONE based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
-Dimensions
111 (W) x 109 (D) x 56 (H) mm
4.4 (W) x 4.3 (D) x 2.2 (H) inches
-Weight
275 g
9.7 oz
-Accessories
Leaflet "Read Me First"
USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
