Technische Daten
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 1700Hz
Depth 344mm (13.54")
Enclosure Material Polypropylene Composite
Family ELX200
Frequency Range (-10 dB) 5...
mehr lesen
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 1700Hz
Depth 344mm (13.54")
Enclosure Material Polypropylene Composite
Family ELX200
Frequency Range (-10 dB) 51 Hz – 20 kHz
Frequency Response (-3 dB) 57 Hz – 16 kHz

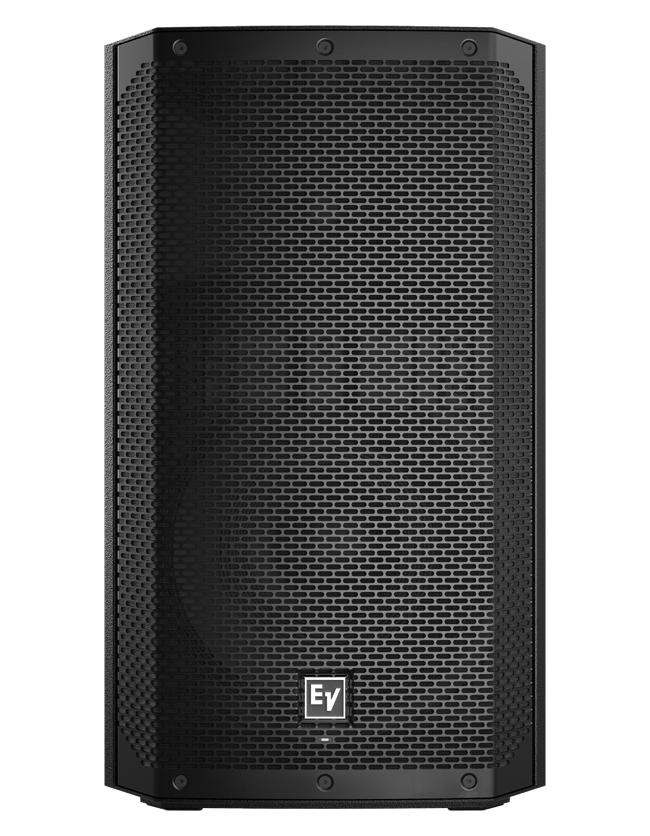

Grille 18 AWG steel with powdercoat
Height 629mm (24.76")
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-12M 300 mm (12 in)
Max. SPL/1m (calc) 130dB
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating 1200W
Powered or Passive Powered
Shipping Weight 17.7kg (39.02 lbs)
Speaker Type Full-Range
Suspension (3) M10 suspension points
Weight Net 15.6kg (34.39 lbs)
Width 363mm (14.29")
Woofer Size 12inch
