Technische Daten
Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Frequency Response (-3 dB) 60...
mehr lesen
Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer EVS-12M 300 mm (12 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 k Hz

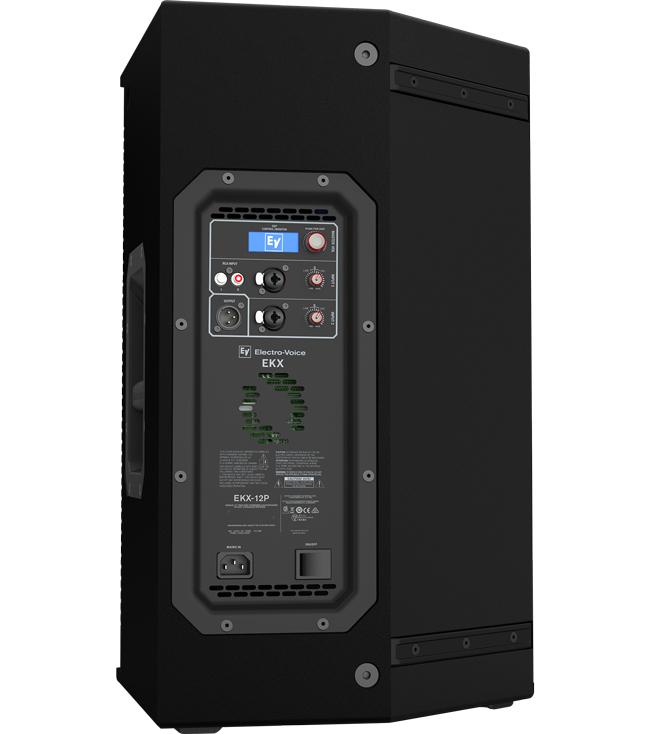

Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material 15 mm, plywood with EVCoat
Grill 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Height 607 mm (23.9")
Width 375 mm (14.76")
Depth 356 mm (14.02")
Weight Net 18.8 kg (41.45 lbs)
Shipping Weight 22.9 kg (50.49 lbs)
