Type VM Dual Magnet
Mounting Half-inch
Frequency Response 20 - 20,000 Hz
Channel Separation 22 dB at 1kHz
Output Channel Balance Output Channel Balance
Output Voltage 6.0 mV (mV at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20°
Vertical Tracking Force Range 2.0 - 4.0g
Stylus Shape Elliptical
Stylus Size 0.3 x 0.7 mil
Stylus Construction Bonded Round Shank
Cantilever Aluminium tapered Pipe
Coil Inductance 1.0 H (1 kHz)
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 8.0x10-6cm/dyne (100Hz)
Recommended Load Impedance 47,000 ohms
Recommended Load Capacitance 100-200 pF
Weight 6.2g
Dimensions H17.2×W17.8×D28.3mm
Replacement Stylus ATN-XP7

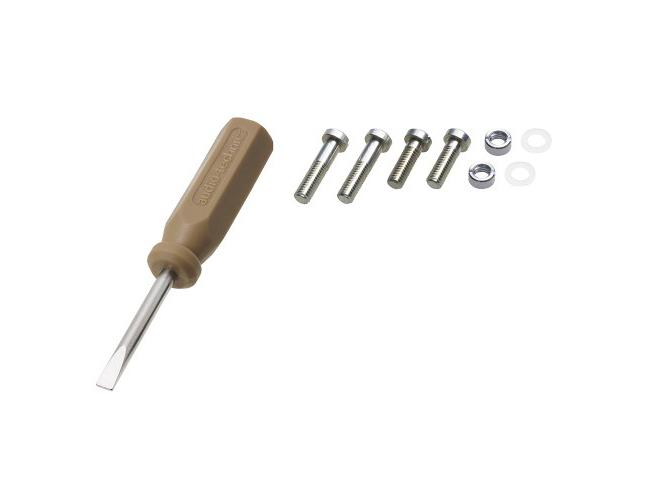

Accessories Included Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
