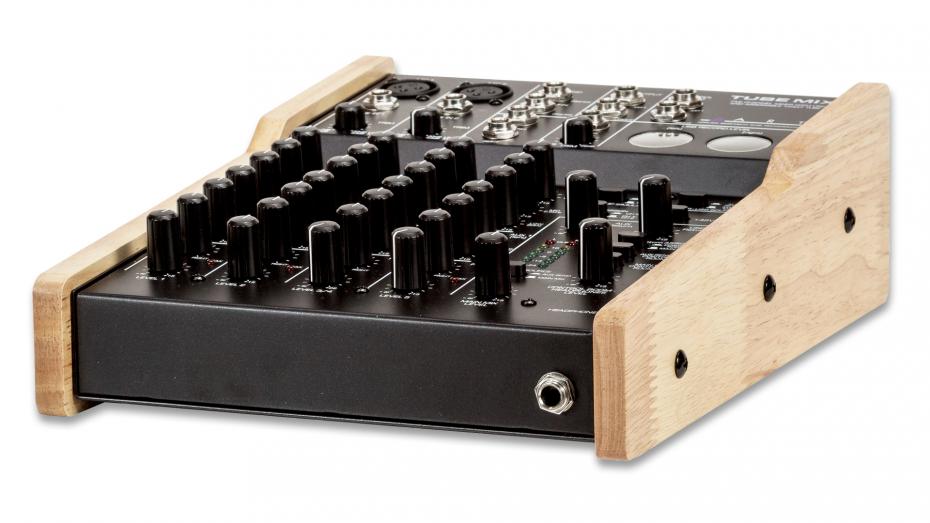

 Fully Featured Tube Driven Five Channel Stereo USB Mixer
|
| Dedicated High Impedance Instrument Input with Amp Simulator
|
| Switchable Low Noise +48V Phantom Power for Condenser Microphones
|
| Fully Featured Input Channels
|
| USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux
|
| Two Wide Dynamic Range Low Noise Mic Preamp Channels
|
| Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
|
| Precise VU Meters and Wide Range LED Meters with Selectable Source
|
| Flexible Control Room / Monitor Section |
Technische Daten
Input Impedance
Microphone: 3.5k ?
Line (CH1, CH2, CH3/4), 10k ?
CH5 (Inst.), 1M ?
Output Impedance
Main, Control Room (Balanced/Unbalanced), 150/100 ?
AUX Outputs, 150 ?
Headphones, 100 ?
Frequen...
mehr lesen
Input Impedance
Microphone: 3.5k ?
Line (CH1, CH2, CH3/4), 10k ?
CH5 (Inst.), 1M ?
Output Impedance
Main, Control Room (Balanced/Unbalanced), 150/100 ?
AUX Outputs, 150 ?
Headphones, 100 ?
Frequency Response
20-100kHz + 1dB
Maximum Input Level
CH1, CH2 (Mic), +9dBu
CH1 CH2 (Line In), +20dBu
CH3/4 (EQ Flat), +20dBu
CH5 (EQ Flat), +16dBu
AUX Return, +24dBu
Maximum Output Level
Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
Aux Send, +20dBu
Headphones, 100mW / Ch @ 300 ?, 50mW /Ch @32 ?
Maximum Gain
LINE IN to Main output (balanced), +63dB
CH 5 to Main output (balanced), 56dB
CH3/4 to Main output (balanced), +30dB
Equivalent Input Noise
Microphone (@max gain), 127dBu “C”wtd.
Line (@max gain), -105dBu “C” wtd.
Instrument (@ max gain), -112dBu “C” wtd.

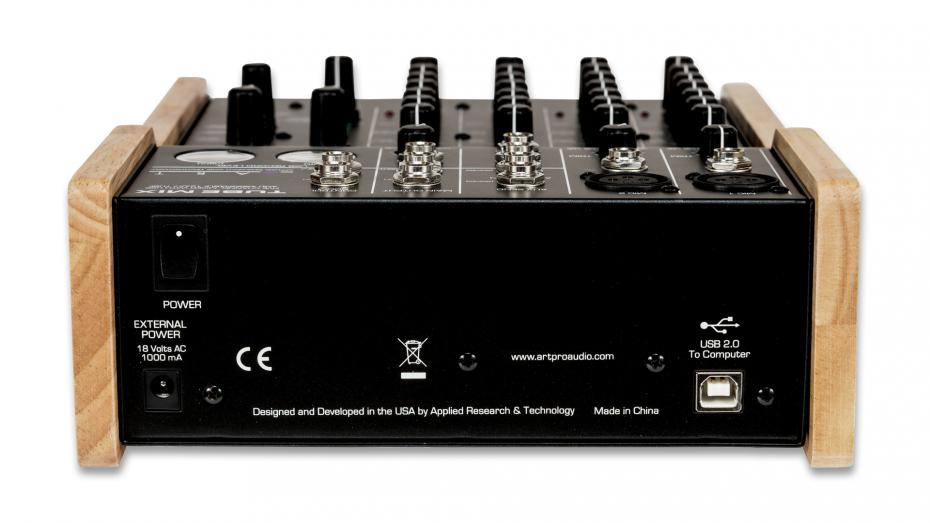

USB Computer Interface
USB class compliant plug-and-play Mac and PC interface
A/D, D/A
16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom Power
Switch selectable, +48V DC, filtered, current limited
Power Requirements
18 VAC, 1000mA
Dimensions
3.3?H x 7.8?W x 10.4?D (84mm x 198mm x 265mm)
Weight
5.5 lbs (2.5 kg)
Note
0 dBu = 0.775Vrms
